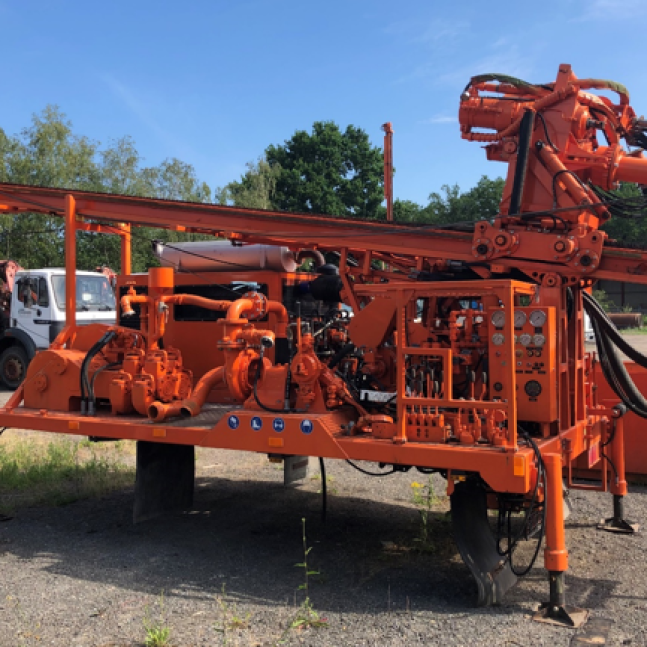

AGBO G300

1.

Mast

max. hook load:

120 kN

2.

Feed system

pull-down capacity:

75 kN

pull-back capacity:

120 kN

lift height:

7 m

installation speed:

0 - 1.4 m/s

removal speed:

0 - 0.5 m/s

3.

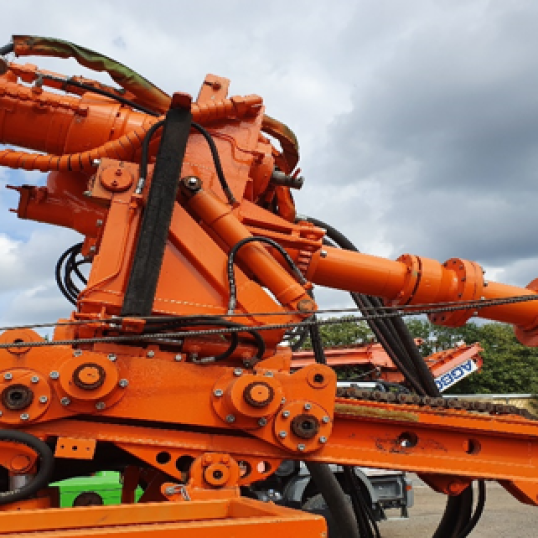

Rotary head type L 130

type:

L 130

torque, 1st gear:

12,400 Nm at 0 - 35 rpm

torque, 1nd gear:

4,400 Nm at 0 - 100 rpm

torque, 3rd gear:

1,300 Nm at 0 - 340 rpm

4.

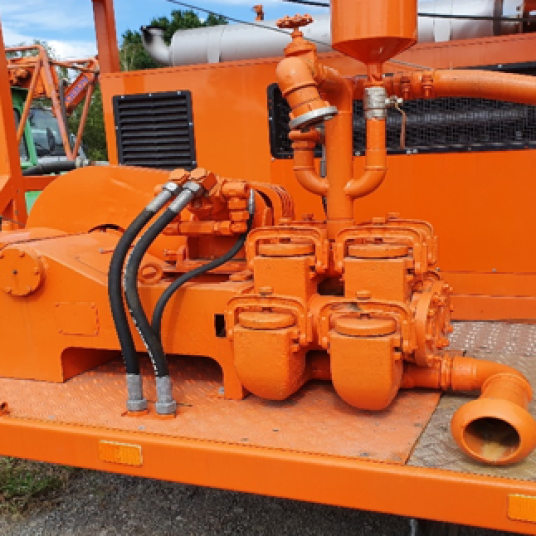

Piston pump CM 4.5 x 5

type:

CM 4.5 x 5

output:

450 ℓ/min

working pressure:

20 bar

5.

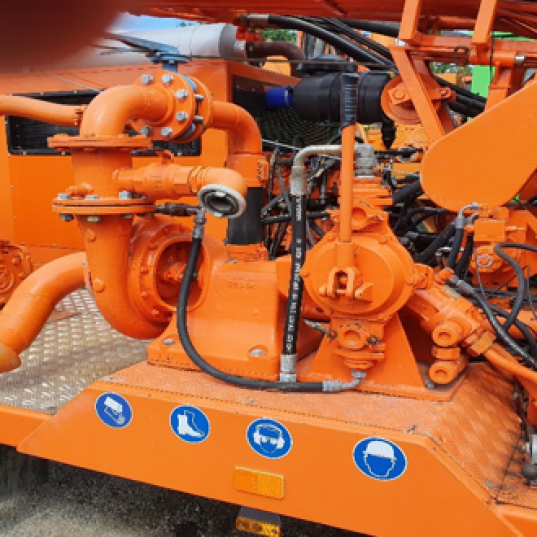

Centrifugal pump NU25-10

type:

NU25-10

output:

2,500 ℓ/min

working pressure:

7 bar

6.

Main Winch

max. line pull:

32 kN

cable speed:

0 - 2.2 m/s

cable diameter:

13 mm

7.

Auxiliary Winch

max. line pull:

15 kN

cable speed:

0 - 1.7 m/s

cable diameter:

8 mm

8.

Mechanical striking device

lift height:

400 mm

weight:

500 kg

stroke rate:

0 - 35 strokes/min

9.

Transport dimensions

length:

10,800 mm

width:

2,500 mm

height:

approx. 3,800 mm

weight:

approx. 16 t

10.

Deck engine

type:

Deutz F6L413FR, 6-cylinder diesel, direct injection

capacity:

107 kW

11.

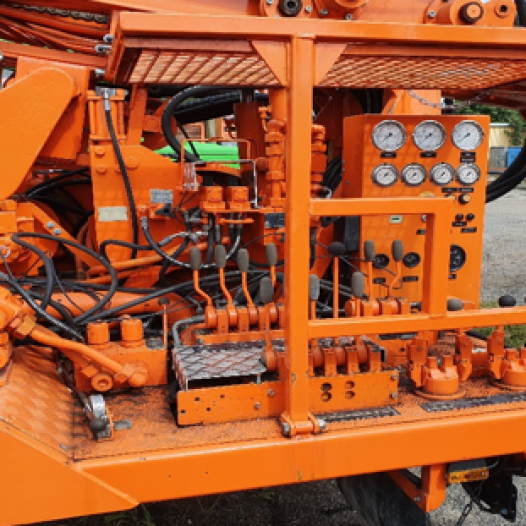

Operator's control board

hydraulical controlled, with levers for all operation modes and functions, manometers and tiltable operator's stand
